Monitoring

Last updated: 2026-06-24

Warning

The online version of the text is being reviewed.

Purpose and overview

This section revises the reporting of information related to Monitoring Programmes in the 2nd and 3rd cycle of reporting of the Water Framework Directive River Basin Management Plans. It presents a proposal for the electronic reporting in the 4th cycle. It also revises the associated spatial data in the MonitoringSite dataset.

Monitoring_2016 - 2nd cycle

The 2016 WFD reporting guidance [1] clarifies that the information requested in the Monitoring_2016 schema, in accordance to Article 8 of the WFD, refers to past monitoring, and not to planned monitoring.

The 2016 WFD reporting guidance document highlights the connection to the EEA voluntary dataflows, and the expectation that Member States report the monitoring results under the WISE SoE dataflows. This would have allowed the requested information to be derived from the WISE SoE dataflows, thus making redundant the electronic reporting under the RBMPs.

Reporting should reflect the monitoring carried out that has informed the second RBMPs. Given that monitoring programmes are usually dynamic and multi‐annual (i.e. in the cases of quality elements with lower frequencies of monitoring), reporting should reflect, as accurately as possible, the monitoring that has informed the preparation of the second RBMPs. Reporting is not intended to include information regarding future monitoring programmes or planned changes.[…]

The data and information on monitoring to be reported under Article 8 of the WFD include a description of the monitoring sites, a specification of the different QEs and chemical substances monitored at each site, and information relating to the associated monitoring programmes.[…]

Member States are expected to report to EEA WISE SoE:

• Water quality results including Priority Substances and River Basin Specific Pollutants to EEAs Waterbases on groundwater, rivers, lakes, transitional waters and coastal waters

• Results from monitoring Biological Quality Elements to EEAs Waterbases on rivers, lakes, transitional waters and coastal waters.

—Excerpts from 2016 WFD Reporting Guidance for the 2nd cycle (pg. 93-100) [1]

In 2016, the WISE SoE dataflows were under revision. Therefore, information about the monitoring programmes was requested in the WFD electronic reporting (see Figure 7).

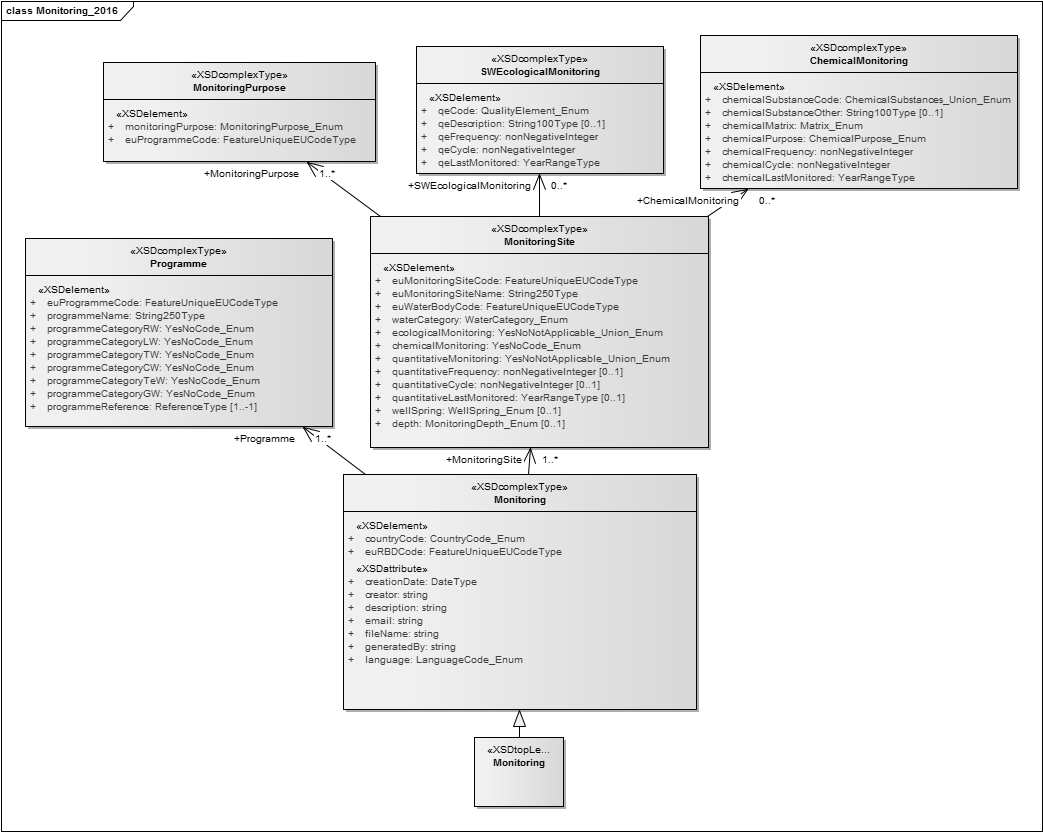

Figure 7 Monitoring_2016 schema - 2nd cycle - Obsolete

Monitoring_2022 - 3rd cycle

The 2022 WFD reporting guidance [2] reiterates that the content of the Monitoring_2022 schema refers to past monitoring, and not to planned monitoring, with exceptional cases allowed for (see excerpt below).

The 2022 WFD reporting guidance document also highlights the connection to the EEA voluntary dataflows, and the expectation that Member States report the monitoring results under the WISE SoE dataflows.

Reporting should reflect the monitoring that was carried out and informed the third RBMPs. It is not intended to include information regarding future monitoring programmes. It can include planned changes when sufficient information is already available on the QEs, substances or parameters that will be monitored and at which frequency. In these cases, the date of the last monitoring should be reported as ‘9999’, as mentioned in the specific guidance below.[…]

The data and information on monitoring to be reported under Article 8 of the WFD include a description of the monitoring sites, a specification of the different QEs and chemical substances monitored at each site, and information relating to the associated monitoring programmes.[…]

Member States are expected to report to EEA WISE SoE:

• Water quality results, including Priority Substances and River Basin Specific Pollutants, to Waterbases on groundwater, rivers, lakes, transitional waters and coastal waters

• Results from monitoring Biological Quality Elements to Waterbases on rivers, lakes, transitional waters and coastal waters

—Excerpts from the 2022 WFD Reporting Guidance for the 3rd cycle (pg. 90-97) [2]

For the 3rd cycle reporting, in 2022, the analysis of the content of the WISE SoE reporting showed gaps in the completeness of the voluntary reporting of monitoring results for water quality: it would not have been possible to derive the requested monitoring information from the EEA Waterbases. Therefore, the Monitoring_2022 schema was simplified (see Figure 8), but kept in the electronic reporting.

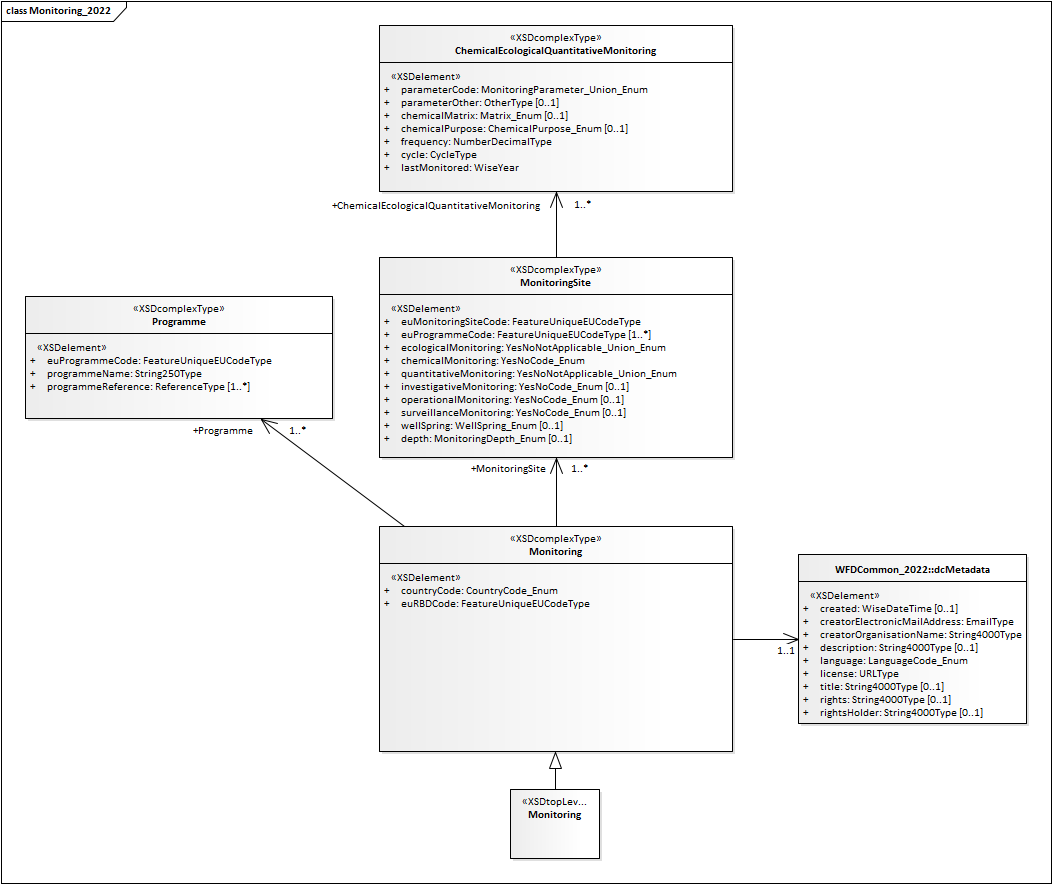

Figure 8 Monitoring_2022 schema - 3rd cycle - Obsolete

Proposed structure - 4th cycle

In preparation on the 4th cycle reporting, an analysis of the current content of the WISE SoE reporting was done again. (See for example Monitoring of CAS_1912-24-9 - Atrazine)

The European coverage of the WISE SoE reporting remains fragmentary, but some Member States provide detailed and abundant data that likely reflects the existing WFD monitoring programmes.
For such Member States, the reporting of derived statistics about sampling frequency and period would constitute duplicate reporting and an unnecessary reporting burden.

Therefore, for the 4th cycle of reporting, the requested information is simplified (see Figure 8).

• Descriptive dataset - 4th cycle

• Spatial dataset - 4th cycle

• Documents dataset - 4th cycle

        ---
config:
  class:
    hideEmptyMembersBox: true
  layout: dagre
  theme: neutral
---
classDiagram
direction TB

class dcMetadata{<<documents>>}
class Reference{<<documents>>}
class Document {<<documents>>}
class Monitoring{}
class MonitoringPurpose{}
class MonitoringProgrammes{}
class MonitoringSite{<<spatial>>}

dcMetadata ..> Document
Reference ..> Document
MonitoringProgrammes ..> Reference

MonitoringSite "1" -- "1..3" MonitoringPurpose
Monitoring "0..n"-- "1" MonitoringSite

classDef default fill:white,stroke:#000;
classDef forFixing fill:white,stroke:#f00;


Figure 9 Monitoring dataflow - Overview - 4th cycle

Descriptive dataset - 4th cycle

MonitoringProgrammes table

The information about the monitoring programmes is provided in the RBMP documents: only the reference to the supporting documents is requested in the MonitoringProgrammes table (see Figure 10).

        ---
config:
  class:
    hideEmptyMembersBox: true
  layout: dagre
  theme: neutral
---
classDiagram
direction LR

class MonitoringProgrammes{
  + euRBDCode: wiseIdentifier
  + useWaterbaseForMonitoringData: YesNo
  + programmesReference: referenceCode
  + investigativeMonitoringReference: referenceCode
  + operationalMonitoringReference: referenceCode
  + surveillanceMonitoringReference: referenceCode
  + gwChemicalMonitoringReference: referenceCode [0..1]
  + gwQuantitativeMonitoringReference: referenceCode [0..1]
  + swChemicalMonitoringReference: referenceCode [0..1]
  + swEcologicalMonitoringReference: referenceCode [0..1]
}

classDef default fill:white,stroke:#000;
classDef forFixing fill:white,stroke:#f00;


Figure 10 Descriptive data - Monitoring Programmes - 4th cycle

The following conditions apply:

1. The MonitoringProgrammes table must have one record for each of the river basin districts being reported (i.e. where dcMetadata.includesMonitoringData = 'yes', see Documents dataset - 4th cycle), identified by its euRBDCode.

2. The gwChemicalMonitoringReference
   must be reported for every river basin district with designated groundwater bodies.

3. The gwQuantitativeMonitoringReference
   must be reported for every river basin district with designated groundwater bodies.

4. The swChemicalMonitoringReference
   must be reported for every river basin district with designated surface water bodies.

5. The swEcologicalMonitoringReference
   must be reported for every river basin district with designated surface water bodies that are not territorial waters.

The useWaterbaseForMonitoringData value defines what needs to be reported in the Monitoring table.

• It applies to all surface water monitoring, except Biological Quality Elements ('QE1%') and Hydromorphological Quality Elements ('QE2%').

• It applies to all groundwater monitoring except Quantitative Monitoring ('EEA_00-01-1').

The option useWaterbaseForMonitoringData = 'yes' indicates that, for all other parameters, the monitoring data statistics should be derived from the data reported to Waterbase.

Monitoring table

A simplified Monitoring table is proposed (see Figure 11).

• The frequency and cycle values are codified, to avoid ambiguities in the reporting and interpretation of results, while maintaining the definitions used in the 2nd and 3rd RBMPs.

• The lastMonitored value indicates the last year (until 2027, inclusive) when the parameter was monitored in situ, at that site. If the parameter has never been monitored in past, but will be monitored during the 4th cycle, at that site, report the value 9999.

• For the 5th cycle of reporting, in 2033, it is expected that information about monitoring parameters, frequency, etc., can be derived from monitoring observations reported under the WISE-2, WISE-6 and WISE-3 dataflows. The derived information would then fully replace the Monitoring table in the RBMP electronic reporting.

        ---
config:
  class:
    hideEmptyMembersBox: true
  layout: dagre
  theme: neutral
  themeVariables:
    noteBkgColor: lightYellow
    noteTextColor: grey
    noteBorderColor: grey
---
classDiagram
direction TB


class Monitoring{
  + euMonitoringSiteCode: wiseIdentifier
  + parameterCode: Parameter
  + chemicalMatrix: ChemicalMatrixType [0..3]
  + chemicalPurpose: ChemicalPurpose [0..2]
  + frequency: MonitoringFrequency
  + cycle: MonitoringCycle
  + lastMonitored: gYear
}

class Parameter{
  <<enumeration>>

  «quantitative monitoring»
  EEA_00-01-1 - Quantitative monitoring

  «biological quality elements»
  QE1-1 - Phytoplankton
  QE1-2 - Other aquatic flora
  QE1-2-1 - Macroalgae
  QE1-2-2 - Angiosperms
  QE1-2-3 - Macrophytes
  QE1-2-4 - Phytobenthos
  QE1-3 - Benthic invertebrates
  QE1-4 - Fish
  QE1-5 - Other species

  «hydromorphological quality elements»
  QE2-1 - Hydrological or tidal regime
  QE2-2 - River continuity conditions
  QE2-3 - Morphological conditions

  «CAS codes and EEA codes under WISE-6»
  ...
}

class ChemicalMatrixType{
    <<enumeration>>
    water
    biota
    sediment
    }

class ChemicalPurpose{
    <<enumeration>>
    status
    trend
    }

class MonitoringFrequency{
    <<enumeration>>
    continuousSampling
    oneSamplePerMonitoringYear
    from2To3SamplesPerMonitoringYear
    from4To11SamplesPerMonitoringYear
    from12To24SamplesPerMonitoringYear
    moreThan24SamplesPerMonitoringYear
    unknown
    }

class MonitoringCycle{
    <<enumeration>>
    once
    onceEvery1Year
    onceEvery2Years
    onceEvery3Years
    onceEvery4Years
    onceEvery5Years
    onceEvery6Years
    onceEvery2RBMPs
    onceEvery3RBMPs
    unknown
    }

Monitoring ..> Parameter
Monitoring ..> ChemicalMatrixType
Monitoring ..> ChemicalPurpose

Monitoring ..> MonitoringCycle
Monitoring ..> MonitoringFrequency

note for Parameter "the label is not part of the code"

classDef default fill:white,stroke:#000;
classDef forFixing fill:white,stroke:#f00;


Figure 11 Descriptive data - Monitoring - 4th cycle

For the 4th cycle, the following conditions apply:

1. The Monitoring table must always list the surface water monitoring sites for Biological Quality Elements ('QE1%') for every river basin district with designated surface water bodies (except territorial waters).

2. The Monitoring table must always list the surface water monitoring sites for Hydromorphological Quality Elements ('QE2%') for every river basin district with designated surface water bodies (except territorial waters).

3. The Monitoring table must always list the groundwater monitoring sites for quantitative monitoring ('EEA_00-01-1') for every river basin district with designated groundwater bodies.

4. If, for a given river basin district, the option useWaterbaseForMonitoringData = 'yes' is reported in the MonitoringProgrammes table, then the monitoring of physico-chemical and chemical parameters must NOT be reported in the Monitoring table.

5. If, for a given river basin district, the option useWaterbaseForMonitoringData = 'no' is reported in the MonitoringProgrammes table, then the monitoring of physico-chemical and chemical parameters must be reported in the Monitoring table.

The quality control requirements defined in the 3rd cycle still apply:

6. The option parameterCode = 'EEA_00-01-1' (Quantitative monitoring) is only valid for monitoring sites in groundwater bodies.

7. The option parameterCode LIKE 'QE1-%' (Biological quality elements) is only valid in rivers, lakes, transitional and coastal water bodies.

8. The parameterCode LIKE 'QE2-%' (Hydromorphological quality elements) is only valid in rivers, lakes, transitional and coastal water bodies.

With regard to chemical monitoring:

9. The chemicalMatrix value must be reported if and only if chemical monitoring occurs.

10. For sites in groundwater bodies where chemical monitoring occurs, chemicalMatrix = 'water' is the only valid option.

11. The chemicalPurpose value must be reported if and only if chemical monitoring occurs.

12. For sites in surface water bodies, chemical monitoring includes priority substances and river basin specific pollutants.

13. For sites in groundwater bodies, chemical monitoring includes priority substances,
    the pollutants designated as “river basin specific pollutants” (for surface waters), and any other chemical substances where parameterCode LIKE 'CAS%'.

14. Some parameters applicable to surface water are NOT valid in groundwater monitoring sites:

    • EEA_3133-07-1 - Oxidisability

    • EEA_3133-02-6 - BOD7

    • EEA_3111-01-1 - Secchi depth

    • EEA_3161-04-4 - Particulate organic nitrogen

    • EEA_3164-08-7 - Nitrate to orthophosphate ratio

    • EEA_3164-07-6 - Total nitrogen to total phosphorus ratio

    • EEA_3164-01-0 - Chlorophyll a

    See the analysis in Groundwater physico-chemical monitoring - Waterbase.

Todo

Monitoring - Monitoring table

• ¿Are there quality controls applicable to frequency and cycle based on the parameterCode?

• ¿The expected range for the lastMonitored year is {[2022,2017],[9999,9999]}?

• ¿What if monitoring data is expected, but no records are reported in the Monitoring table?

• ¿What if monitoring data is expected, but no records are reported in the Monitoring table for specific parameters?

MonitoringPurpose table

The MonitoringPurpose table indicates if a given monitoring site is part of surveillance, operational, and/or investigative monitoring (see Figure 12).

        ---
config:
  class:
    hideEmptyMembersBox: true
  layout: dagre
  theme: neutral
---
classDiagram
direction TB

class MonitoringPurpose{
  + euMonitoringSiteCode: wiseIdentifier
  + monitoringPurpose: WFDMonitoringPurpose [1..3]
}

class WFDMonitoringPurpose{
    <<enumeration>>
    investigativeMonitoring
    operationalMonitoring
    surveillanceMonitoring
    }

MonitoringPurpose ..> WFDMonitoringPurpose

classDef default fill:white,stroke:#000;
classDef forFixing fill:white,stroke:#f00;


Figure 12 Descriptive data - MonitoringPurpose - 4th cycle

Codelists - 4th cycle

• For the ChemicalMatrixType codelist, see Figure 11 and Table 1.

• For the ChemicalPurpose codelist, see Figure 11 and Table 2.

• For the MonitoringCycle codelist, see Figure 11 and Table 3.

• For the MonitoringFrequency codelist, see Figure 11 and Table 4.

• For the WFDMonitoringPurpose codelist, see Figure 12 and Table 5.

• For the ParameterCode codelist, see Figure 12. Only the code (without the label) is used in the reporting. For the chemical and physico-chemical quality elements, the 'CAS%' code or 'EEA%' code must be used, (and not the 'QE3%' code).
  Note also that the option 'EEA_00-00-0' (Other parameter) will not be available in the 4th cycle of reporting.

Table 1 Codelist - 4th cycle - ChemicalMatrixType

Notation	Label	Definition and notes
water	Water
biota	Biota
sediment	Sediment

Table 2 Codelist - 4th cycle - ChemicalPurpose

Notation	Label	Definition and notes
status	Status
trend	Trend

Table 3 Codelist - 4th cycle - MonitoringCycle

Notation	Label	Definition and notes
once	Once	The monitoring programme will be implemented once per cycle and, depending on the results, future monitoring will be decided.
onceEvery1Year	Once every year	Use this option for parameters measured continuously, where monitoringFrequency = 'continuousSampling', for example river flow or groundwater level.
onceEvery2Years	Once every 2 years
onceEvery3Years	Once every 3 years
onceEvery4Years	Once every 4 years
onceEvery5Years	Once every 5 years
onceEvery6Years	Once every RBMP (6 years)
onceEvery2RBMPs	Once every 2 RBMPs (12 years)
onceEvery3RBMPs	Once every 3 RBMPs (18 years)
unknown	Unknown	This option is valid if and only if: lastMonitored = 9999

Table 4 Codelist - 4th cycle - MonitoringFrequency

Notation	Label	Definition and notes
continuousSampling	Continuous sampling
oneSamplePerMonitoringYear	1 sample per monitoring year
from2To3SamplesPerMonitoringYear	2 to 3 samples per monitoring year
from4To11SamplesPerMonitoringYear	4 to 11 samples per monitoring year
from12To24SamplesPerMonitoringYear	12 to 24 samples per monitoring year
moreThan24SamplesPerMonitoringYear	More than 24 samples per monitoring year
unknown	Unknown	This option is valid if and only if: lastMonitored = 9999 or monitoringCycle = 'once'

Table 5 Codelist - 4th cycle - WFDMonitoringPurpose

Notation	Label	Definition and notes
investigativeMonitoring	Investigative monitoring
operationalMonitoring	Operational monitoring
surveillanceMonitoring	Surveillance monitoring

Spatial dataset - 4th cycle

MonitoringSite spatial data

The Spatial dataset contains only the MonitoringSite spatial data (Figure 13).

The following changes have been made to the MonitoringSite spatial table (in comparison to the 3rd cycle of reporting):

• The date values are now requested as simply as YYYY-MM-DD, because that was the format used by the data providers during the previous cycles, and therefore it is not necessary to maintain more variants. This applies to beginLifespanVersion, endLifespanVersion, operationalActivityPeriodBegin, operationalActivityPeriodEnd.

• Likewise, the attributes supersededByIdentifier and supersededByIdentifierScheme have been kept for clarity’s sake. In the reported datasets, the values of these attributes will always be NULL. The appropriate value will be derived and included in the published WISE datasets for the 1st, 2nd and 3rd cycle RiverBasinDistrict datasets.

• Two attributes were removed, because they are no longer required: relatedToIdentifier and relatedToIdentifierScheme.

• The maximumDepth attribute was removed. Under WISE-6, monitoring results can be reported with their respective parameterSampleDepth.

• The catchmentArea attribute was removed. (In the future, it will be possible to derive this value using spatial analysis over the upcoming EU-Hydro drainage direction model.)

        ---
config:
  class:
    hideEmptyMembersBox: true
  layout: dagre
  theme: neutral
---
classDiagram
direction TB
class MonitoringSite{
  + geometry_point: MultiPoint
  + inspireIdLocalId: string254
  + inspireIdNamespace: string254
  + inspireIdVersionId: string25 [0..1]
  + thematicIdIdentifier: wiseIdentifier
  + thematicIdIdentifierScheme: IdentifierScheme
  + beginLifespanVersion: date [0..1]
  + endLifespanVersion: date [0..1]
  + supersedesIdentifier: wiseIdentifier [0..n]
  + supersedesIdentifierScheme: IdentifierScheme [0..1]
  + supersededByIdentifier: wiseIdentifier [0..n]
  + supersededByIdentifierScheme: IdentifierScheme [0..1]
  + wiseEvolutionType: WiseEvolutionType
  + nameTextInternational: string254
  + nameText: string254
  + nameLanguage: Language
  + operationalActivityPeriodBegin: date
  + operationalActivityPeriodEnd: date [0..1]
  + featureOfInterestIdentifier: wiseIdentifier
  + featureOfInterestIdentifierScheme: IdentifierScheme
  + mediaMonitoredBiota: YesNo
  + mediaMonitoredWater: YesNo
  + mediaMonitoredSediment: YesNo
  + purpose: WisePurposeOfCollectionValue [0..n]
  + confidentialityStatus: ConfidentialityStatus
  + link: URL [0..1]
}

class ConfidentialityStatus{
<<enumeration>>
F
N
}

class WisePurposeOfCollectionValue{
<<enumeration>>
WFD
SOE
AGR
IND
DRI
«Protected area»
DWD
SHE
BWD
UWW
NID
HAB
«Transboundary monitoring»
RIV
SEA
INT
«Other network»
MSF
REF
}

MonitoringSite ..> WisePurposeOfCollectionValue
MonitoringSite ..> ConfidentialityStatus

classDef default fill:white,stroke:#000;
classDef forFixing fill:white,stroke:#f00;


Figure 13 Spatial dataset - MonitoringSite - 4th cycle

Codelists - 4th cycle

• For the WisePurposeOfCollectionValue codelist, see Figure 13 and Table 6.
  Reporting the purpose of collection is optional. If reporting more than one purpose, use a comma-separated list.

• For the ConfidentialityStatus codelist, see Figure 13 and Table 7.
  Refer to the SDMX guidelines and codelists for more information on confidentiality aspects [3][4].

Table 6 Codelist - 4th cycle - WisePurposeOfCollectionValue

Notation	Label	Definition and notes
WFD	WFD Monitoring Site
SOE	EIONET State of Environment monitoring
AGR	Groundwater abstraction site for irrigation
IND	Groundwater abstraction site for industrial supply	If necessary, set confidentialityStatus = 'N'.
DRI	Groundwater abstraction site for human consumption	If necessary, set confidentialityStatus = 'N'.
DWD	Drinking water	«Protected area» WFD Annex IV.1.i
SHE	Shellfish designated waters	«Protected area» WFD Annex IV.1.ii
BWD	Recreational or bathing water	«Protected area» WFD Annex IV.1.iii
UWW	Nutrient sensitive area under the Urban Waste Water Treatment Directive	«Protected area» WFD Annex IV.1.iv
NID	Nutrient sensitive area under the Nitrates Directive	«Protected area» WFD Annex IV.1.iv
HAB	Protection of habitats or species depending on water	«Protected area» WFD Annex IV.1.v
RIV	International network of a river convention, including bilateral agreements	«Transboundary monitoring»
SEA	International network of a sea convention	«Transboundary monitoring»
INT	International network of other international convention	«Transboundary monitoring»
MSF	Marine Strategy Framework Directive monitoring network
REF	Reference network monitoring site

Table 7 Codelist - 4th cycle - ConfidentialityStatus

Notation	Label	Definition and notes [4] [3]
F	Free for publication	The geometry will be published as reported.
N	Not for publication, restricted for internal use only	The reported geometry will not be published. For monitoring sites, an arbitrary location within the water body may be used in some visualisations.

Documents dataset - 4th cycle

The Documents dataset follows the standard structure used in various WISE dataflows (Figure 14):

• The dcMetadata table provides the basic Dublin Core metadata elements about the delivery.

  • If required by the data providers, and especially if spatial data is being reported, the licenseDocument and the metadataDocument attributes allow the provision of additional information about the dataset.

  • The dcMetadata table also functions as a “manifest file” explaining if the delivery contains data for a given river basin district or not.

• The Document table allows the upload of documents (for example, PDFs) or the provision of a hyperlink to a document stored in a publicly accessible national web site.

• The Reference table is also standard in the WISE dataflows: the bookmark it allows the identification of the chapter(s), sections(s) or page range(s) where the relevant information about a subject can be found within a document.

        ---
config:
  class:
    hideEmptyMembersBox: true
  layout: dagre
  theme: neutral
---
classDiagram
direction LR

class dcMetadata {

«metadata»
+ title: string
+ creatorOrganisationName: string
+ creatorElectronicMailAddress: Email
+ description: string [0..1]
+ created: date [0..1]
+ language: Language [1..n]
+ license: Licence
+ rights: string [0..1]
+ rightsHolder: string [0..1]
+ licenseDocument: documentCode [0..n]
+ metadataDocument: documentCode [0..n]

«manifest»
+ euRBDCode: wiseIdentifier
+ includesSpatialData: YesNo
+ includesMonitoringData: YesNo
}

class Reference {
  + referenceCode: wiseIdentifier
  + documentCode: documentCode
  + bookmark: string250
  + subject: string250
}

class Document {
+ documentCode: wiseIdentifier
+ documentName: string250
+ hyperlink: URL [0..1]
+ documentFile: Attachment [0..1]
}

class Licence{
  <<enumeration>>
  CC0
  CC_BY_4_0
  exactMatch_CC_BY_4_0
  narrowMatch_CC_BY_4_0
}

Reference  ..> Document: documentCode
dcMetadata ..> Document: licenseDocument
dcMetadata ..> Document: metadataDocument
dcMetadata ..> Licence: license
classDef default fill:white,stroke:#000;
classDef forFixing fill:white,stroke:#f00;


Figure 14 Monitoring - 4th cycle - Documents

The following criteria apply:

1. The dcMetadata table must contain one and only one record for each of the country’s river basin districts, identified by the euRBDCode.

2. The spatial dataset is national. The includesSpatialData value must be the same for all river basin districts.

3. If includesSpatialData = 'no' then no spatial data is expected, and the quality control of the monitoring dataset will run against the last technically accepted delivery of monitoring sites.

4. For countries reporting under the WFD, the last technically accepted delivery of monitoring sites is always the data reported in the 3rd cycle.

5. The monitoring dataset is also national, but the quality control will allow deliveries where some, or all, the river basin districts have includesMonitoringData = no.

6. For countries reporting under the WFD, the quality control will raise an ERROR, if some, or all, the river basin districts have includesMonitoringData = no.

Annexes - Data analysis - 3rd cycle

This section contains some of the exploratory data analysis that supported the revision of the data model.

It is not relevant for the understanding of the proposed model, but may be informative for data providers involved in the testing phase of the 4th cycle dataflows.

About the EEA discodata service

The example queries can be executed interactively in the EEA discodata service.
Note that some queries may timeout.
If you need to analyse the entire European dataset, download it in CSV format.
For example, the link https://discodata.eea.europa.eu/download/WISE_WFD/v2r1/GWB_GroundWaterBody downloads the data of the [WISE_WFD].[v2r1].[GWB_GroundWaterBody] table.

About the examples below

The SQL queries below illustrate the use of the existing European datasets, and do not necessarily match the queries used to obtain the tables (although they may be adjusted for that purpose).

Monitoring of CAS_1912-24-9 - Atrazine

See Table 8 for the information about the monitoring of Atrazine in the period 2016-2021, by water body category, in all matrices, according to the data reported under the WFD2022 Monitoring schema.

See Table 9 for the monitoring results for Atrazine in the period 2016-2021, by water body category, in water, according to the data available in the Waterbase_T_WISE6_DisaggregatedData table (reported under WISE SoE Water Quality - WISE-6).

See Table 10 for the monitoring results for Atrazine in the period 2016-2021, by water body category and country, in water, according to the data available in the Waterbase_T_WISE6_DisaggregatedData table (reported under WISE SoE Water Quality - WISE-6). Note that over 61% of the data was reported by Italy and France.

See Table 11 for the monitoring results for Atrazine in the period 2022-2027, by water body category, in water, according to the data available in the Waterbase_T_WISE6_DisaggregatedData table (reported under WISE SoE Water Quality - WISE-6). Note that only data until 2023 has been reported so far.

See Table 12 for the monitoring results for Atrazine in the period 2016-2021, by water body category and country, in water, according to the data available in the Waterbase_T_WISE6_DisaggregatedData table (reported under WISE SoE Water Quality - WISE-6). Note that over 64% of the data was reported by Italy and France.

Table 8 Monitoring of Atrazine in the period 2016-2021, according to the WFD2022 reporting.

wbCategory	countries	waterBodies	sites	records
GW	18	2764	16028	16028
LW	23	2658	2798	2975
RW	26	14990	16880	17217
TW	14	393	481	532
CW	18	591	859	1017
TeW	8	13	37	45

Table 9 Data related to Atrazine in the period 2016-2021, in Waterbase_T_WISE6_DisaggregatedData, by water category.

wbCategory	countries	waterBodies	sites	samples
GW	15	2302	8351	59586
LW	15	738	782	10484
RW	19	4062	4380	114545
TW	11	134	178	3124
CW	7	238	337	3586
TeW	1	1	1	12

Show table by country

Table 10 Data related to Atrazine in the period 2016-2021, in Waterbase_T_WISE6_DisaggregatedData, by water category and country.

country	GW	LW	RW	TW	CW	total
IT	2925	144	1828	84	185	5166
FR	1703	137	1605	6		3451
DE	853	1	142	1		997
DK	770					770
CZ	651					651
BE	396		44	3		443
IE	111	79	167			357
PL	180	134	1			315
PT	176	20	72	31	9	308
EL		24	210	27	35	296
NL		164	61	9	8	242
SK	194		16			210
LV	156	8	22			186
BG	89	13	57	6		165
CY	80	10	13			103
EE		35	54		10	99
ES				4	86	90
SI	44	8	20		4	76
HR	23	4	33	1		61
LT		1	19	6		26
FI			14			14
SE			2			2
total	8351	782	4380	178	337	14028

Table 11 Provisional data related to Atrazine in the period 2022-2027, in Waterbase_T_WISE6_DisaggregatedData, by water category.

wbCategory	countries	waterBodies	sites	samples
GW	15	2271	7991	23378
LW	11	314	343	2811
RW	16	3297	3503	36323
TW	8	89	122	1621
CW	6	116	145	1129

Show table by country

Table 12 Provisional data related to Atrazine in the period 2022-2027, in Waterbase_T_WISE6_DisaggregatedData, by water category and country

country	GW	LW	RW	TW	CW	total
IT	2552	104	1649	96	106	4507
FR	1942	51	1277			3270
DK	1018					1018
DE	749	2	174	4		929
CZ	654					654
BE	231		38	3		272
SK	239		24			263
PL	178					178
PT	136	11	23	1	4	175
LV	111	10	29			150
NL		89	34	9	8	140
BG	59	9	59	2		129
IE	35	35	59			129
EE		27	60		18	105
CY	61	1	8			70
HR	21	4	34	1	7	67
LT			27	6	2	35
SI	5		6			11
SE			2			2
total	7991	343	3503	122	145	12104

Table 13 Data related to Atrazine in the period 2016-2021, by country and water body category, in the EEA pesticides indicator.

wbCategory	countries	waterBodies	sites	samples
GW	17	2973	11871	82989
LW	16	1176	1275	16841
RW	21	6553	7023	152628

Show code

Example 3 Monitoring programmes for Atrazine - 3rd cycle

-- https://discodata.eea.europa.eu/

SELECT [parameterCode],[waterBodyCategory]
    ,count(*) as [numberOfRecords]
    ,count(distinct [euMonitoringSiteCode]) as [numberOfSites]
    ,count(distinct [waterbodyCode]) as [numberOfWaterBodies]
    ,count(distinct [countryCode]) as [numberOfCountries]
FROM [WISE_WFD].[v2r1].[Monitoring_MonitoringSite_ChemicalEcologicalQuantitativeMonitoring] WITH (NOLOCK)
WHERE [hasDescriptiveData] = 1
AND [cYear] = 2022
AND [waterBodyCategory] IS NOT NULL
AND [parameterCode] = 'CAS_1912-24-9 - Atrazine'
GROUP BY [parameterCode],[waterBodyCategory]
ORDER BY [numberOfRecords] DESC

Show code

Example 4 Monitoring results for Atrazine - Waterbase

-- https://discodata.eea.europa.eu/
-- Warning: the query may timeout in the public interface.

/**
    Monitoring results for CAS_1912-24-9 - Atrazine available in [Waterbase_T_WISE6_DisaggregatedData].
    Monitoring sites with at least 1 valid observation of Atrazine in the period 2016-2021, by water body category,
    where the analysed matrix is Water (total or dissolved fraction).
**/

SELECT [parameterWaterBodyCategory] AS [waterBodyCategory],
      count(distinct a.[countryCode]) as [numberOfCountries],
      count(distinct b.[waterBodyIdentifier]) numberOfWaterBodies,
      count(distinct a.[monitoringSiteIdentifier]) numberOfMonitoringSites,
      count(*) as numberOfSamples

  FROM [WISE_SOE].[latest].[Waterbase_T_WISE6_DisaggregatedData] a
  JOIN [WISE_SOE].[latest].[Waterbase_S_WISE_SpatialObject_DerivedData] b
  ON a.monitoringSiteIdentifier = b.monitoringSiteIdentifier
  AND a.monitoringSiteIdentifierScheme = b.monitoringSiteIdentifierScheme
  WHERE [observedPropertyDeterminandCode] = 'CAS_1912-24-9' -- Atrazine
  AND [phenomenonTimeReferenceYear] BETWEEN 2016 AND 2021 -- 2nd cycle
  AND [procedureAnalysedMatrix] IN ( 'W', 'W-DIS')  -- Water (total or dissolved)
  AND [metadata_statusCode] in ('accepted', 'valid', 'experimental', 'stable','derived')
  AND ISNULL([resultObservationStatus],'') NOT IN ('L','M','N','O','Z')
  AND a.[monitoringSiteIdentifierScheme] = 'euMonitoringSiteCode' -- WFD monitoring sites
  AND a.[countryCode] != 'UK' -- Exclude the UK
  GROUP BY [parameterWaterBodyCategory]

Show code

Example 5 Monitoring results for Atrazine - EEA Pesticides Indicator

SELECT [waterBodyCategory],
      [countryCode],
      [waterBodyIdentifier],
      [monitoringSiteIdentifier],
      sum([resultNumberOfSamples]) as [totalNumberOfSamples],
      max([resultNumberOfSamples]) as [maximumNumberOfSamplesPerYear],
      count(distinct [phenomenonTimeReferenceYear]) as [numberOfSamplingYears]
FROM
(SELECT [countryCode]
      ,[monitoringSiteIdentifier]
      ,[waterBodyIdentifier]
      ,[waterBodyCategory]
      ,[phenomenonTimeReferenceYear]
      ,[eeaIndicator]
      ,[resultNumberOfSamples]

  FROM [WISE_Indicators].[latest].[AggregatedData_Pesticides]
  WHERE [eeaIndicator] = 'CAS_1912-24-9 - Atrazine'
  AND [phenomenonTimeReferenceYear] BETWEEN 2016 AND 2021 -- 2nd cycle
  AND [monitoringSiteIdentifierScheme] = 'euMonitoringSiteCode' -- WFD monitoring sites

  ) AS t
  GROUP BY [waterBodyCategory],[countryCode],[waterBodyIdentifier],[monitoringSiteIdentifier]
  ORDER BY [waterBodyCategory],[countryCode],[waterBodyIdentifier],[monitoringSiteIdentifier]

Show code

Example 6 Monitoring results for Atrazine by water category - EEA Pesticides Indicator

-- https://discodata.eea.europa.eu
-- Warning: the query may timeout in the public interface.

/**
    Monitoring results for CAS_1912-24-9 - Atrazine used in the EEA pesticides indicator.
    RESULTS BY WATER CATEGORY

**/

SELECT [waterBodyCategory],
      count(distinct [countryCode]) numberOfCountries,
      count(distinct [waterBodyIdentifier]) numberOfWaterBodies,
      count(distinct [monitoringSiteIdentifier]) numberOfMonitoringSites,
      sum([resultNumberOfSamples]) as numberOfSamples
FROM
(SELECT [countryCode]
      ,[monitoringSiteIdentifier]
      ,[waterBodyIdentifier]
      ,[waterBodyCategory]
      ,[phenomenonTimeReferenceYear]
      ,[eeaIndicator]
      ,[resultNumberOfSamples]

  FROM [WISE_Indicators].[latest].[AggregatedData_Pesticides]
  WHERE [eeaIndicator] = 'CAS_1912-24-9 - Atrazine'
  AND [phenomenonTimeReferenceYear] BETWEEN 2016 AND 2021 -- 2nd cycle
  AND [monitoringSiteIdentifierScheme] = 'euMonitoringSiteCode' -- WFD monitoring sites

  ) AS t
  GROUP BY [waterBodyCategory]
  ORDER BY [waterBodyCategory]

Groundwater quantitative monitoring - 3rd cycle

Show code

Example 7 Groundwater quantitative monitoring - 3rd cycle

--   https://discodata.eea.europa.eu/
SELECT [parameterCode]
    ,count(*) as [numberOfRecords]
    ,count(distinct [euMonitoringSiteCode]) as [numberOfSites]
    ,count(distinct [waterbodyCode]) as [numberOfWaterBodies]
    ,count(distinct [countryCode]) as [numberOfCountries]
FROM [WISE_WFD].[v2r1].[Monitoring_MonitoringSite_ChemicalEcologicalQuantitativeMonitoring] WITH (NOLOCK)
WHERE [hasDescriptiveData] = 1
AND [cYear] = 2022
AND [parameterCode] = 'EEA_00-01-1 - Quantitative monitoring'
AND [waterBodyCategory] = 'GW'
GROUP BY [parameterCode]

Groundwater chemical monitoring - 3rd cycle

Show code

Example 8 Groundwater chemical monitoring - 3rd cycle

--   https://discodata.eea.europa.eu/

/**
Groundwater chemical monitoring programmes reported in WFD2022
Except 'EEA_00-00-0 - Other parameter'.
**/

SELECT [parameterCode]
    ,count(*) as [numberOfRecords]
    ,count(distinct [euMonitoringSiteCode]) as [numberOfSites]
    ,count(distinct [waterbodyCode]) as [numberOfWaterBodies]
    ,count(distinct [countryCode]) as [numberOfCountries]
FROM [WISE_WFD].[v2r1].[Monitoring_MonitoringSite_ChemicalEcologicalQuantitativeMonitoring] WITH (NOLOCK)
WHERE [hasDescriptiveData] = 1
AND [cYear] = 2022
AND [parameterCode] != 'EEA_00-00-0 - Other parameter'
AND [parameterCode] != 'EEA_00-01-1 - Quantitative monitoring'
AND [waterBodyCategory] = 'GW'
GROUP BY [parameterCode]
ORDER BY [numberOfRecords] DESC

Groundwater physico-chemical monitoring - Waterbase

The table below shows the physico-chemical monitoring in groundwater, as reported to Waterbase.

All the parameters possible in surface water are listed: some of them do not make sense in groundwater (e.g. Secchi depth) and/or where never reported to Waterbase.

Those parameters will not be accepted in groundwater monitoring sites:

• EEA_3133-07-1 - Oxidisability

• EEA_3133-02-6 - BOD7

• EEA_3111-01-1 - Secchi depth

• EEA_3161-04-4 - Particulate organic nitrogen

• EEA_3164-08-7 - Nitrate to orthophosphate ratio

• EEA_3164-07-6 - Total nitrogen to total phosphorus ratio

• EEA_3164-01-0 - Chlorophyll a

The list may be modified based on the input of the thematic experts.

Show table

Table 14 Groundwater physico-chemical monitoring in Waterbase

Parameter	Last year reported	Number of records	Number of sites	Number of countries
EEA_31-01-6 - Hardness	2023	68609	7491	11
EEA_3142-02-7 - Chlorine Cl-	2023	38397	3224	9
EEA_3142-01-6 - Electrical conductivity	2023	327302	25331	29
EEA_3141-01-3 - Salinity	2021	186	87	1
EEA_3133-07-1 - Oxidisability	«none»	«none»	«none»	«none»
EEA_3133-06-0 - Total organic carbon (TOC)	2023	106900	9383	19
EEA_3133-05-9 - Dissolved organic carbon (DOC)	2023	27020	4564	7
EEA_3133-04-8 - CODMn	2023	44504	3549	13
EEA_3133-03-7 - CODCr	2023	350	160	5
EEA_3133-02-6 - BOD7	«none»	«none»	«none»	«none»
EEA_3133-01-5 - BOD5	2023	853	111	6
EEA_3132-01-2 - Dissolved oxygen	2023	308192	22098	34
EEA_3131-01-9 - Oxygen saturation	2023	34092	4516	6
EEA_31615-01-7 - Total nitrogen	2023	11928	1503	11
EEA_31613-01-1 - Non-ionised ammonia	2021	876	131	2
EEA_3121-01-5 - Water temperature	2023	217782	20414	24
EEA_31-03-8 - Total dissolved solids	2023	19892	1985	8
EEA_31-02-7 - Total suspended solids	2023	1639	163	5
EEA_3112-01-4 - Turbidity	2023	3640	654	4
EEA_3111-01-1 - Secchi depth	«none»	«none»	«none»	«none»
EEA_3161-05-5 - Total inorganic nitrogen	2023	2337	65	1
EEA_3161-04-4 - Particulate organic nitrogen	«none»	«none»	«none»	«none»
EEA_3161-03-3 - Total organic nitrogen	2023	2116	65	1
EEA_3161-02-2 - Total oxidised nitrogen	2021	10938	1548	2
EEA_3161-01-1 - Kjeldahl nitrogen	2019	306	31	4
EEA_3153-02-4 - Alkalinity	2023	3192	969	3
EEA_3153-01-3 - Acid neutralising capacity to pH 4.5	2023	2625	797	2
EEA_3152-01-0 - pH	2023	289088	22776	29
EEA_3151-01-7 - Acid neutralising capacity	2023	19191	2026	3
EEA_3164-08-7 - Nitrate to orthophosphate ratio	«none»	«none»	«none»	«none»
EEA_3164-07-6 - Total nitrogen to total phosphorus ratio	2015	3	1	1
EEA_3164-01-0 - Chlorophyll a	«none»	«none»	«none»	«none»
EEA_3163-01-7 - Silicate	2023	14015	1693	6

Show code

Example 9 Groundwater monitoring - Waterbase

SELECT  [observedPropertyDeterminandCode]
        ,MAX(YEAR([phenomenonTimeSamplingDate])) AS [lastYearReportedInGW]
        ,COUNT(*) AS [numberOfRecordsInGW]
        ,COUNT(DISTINCT [monitoringSiteIdentifier]) AS [numberOfSitesInGW]
        ,COUNT(DISTINCT [countryCode]) AS [numberOfCountriesInGW]
  FROM [WISE_SOE].[latest].[T_WISE6_DisaggregatedData]
  WHERE [parameterWaterBodyCategory] = 'GW'
  GROUP BY [observedPropertyDeterminandCode]

Surface water chemical monitoring - 3rd cycle

The full list of priority substances and river basin specific pollutants (except ‘EEA_00-00-0 - Other parameter’), includes 231 substance codes. Note, however, that more substances are being monitored, according to the reported data.

Show code

Example 10 Groundwater chemical monitoring - 3rd cycle

--   https://discodata.eea.europa.eu/

/**

List of priority substances and river basin specific pollutants reported in WFD2022.
Except 'EEA_00-00-0 - Other parameter'.

**/

SELECT DISTINCT [swPrioritySubstanceCode]  AS [substanceCode] , 'ps' as [substanceType]
FROM [WISE_WFD].[latest].[SWB_SurfaceWaterBody_SWPrioritySubstance]
WHERE [hasDescriptiveData] = 1
AND [cYear] = 2022
AND [swPrioritySubstanceCode] != 'None'

UNION

SELECT DISTINCT [swFailingRBSP] AS [substanceCode] , 'rbsp' as [parameterType]
FROM [WISE_WFD].[v2r1].[SWB_SurfaceWaterBody_FailingRBSP]
WHERE [hasDescriptiveData] = 1
AND [cYear] = 2022
AND [swFailingRBSP] != 'EEA_00-00-0 - Other parameter'
AND [swFailingRBSP] != 'None'
AND [swFailingRBSP] NOT IN ('CAS_14797-55-8 - Nitrate','CAS_14797-65-0 - Nitrite','CAS_14798-03-9 - Ammonium','CAS_18785-72-3 - Sulphate','EEA_31613-01-1 - Non-ionised ammonia')

See Table 15: note that substances like Nitrate, Nitrite, Ammonium, Sulphate, and Non-ionised ammonia are sometimes reported both as quality elements, and as river basin specific pollutants. There are additional substances in the 2nd cycle.

These situations should be clarified with MS (and clear guidelines provided so that the quality control is implemented correctly).

Table 15 Substances reported as River Basin Specific Pollutants that are also classified as QE3-1.

swFailingRBSP	qeCode	waterBodiesFailing	countries	country
CAS_14797-55-8 - Nitrate	QE3-1-6-1-1 - Nitrate	57	1	SE
CAS_14797-65-0 - Nitrite	QE3-1-6-1-2 - Nitrite	23	1	BE
CAS_14798-03-9 - Ammonium	QE3-1-6-1-4 - Ammonium	510	1	NL
CAS_18785-72-3 - Sulphate	QE3-1-4-2 - Other determinand for salinity	3	1	SI
EEA_31613-01-1 - Non-ionised ammonia	QE3-1-6-1-3 - Non-ionised ammonia	126	1	SE

Show code

Example 11 River Basin Specific Pollutants - 3rd cycle

--   https://discodata.eea.europa.eu/

SELECT [swFailingRBSP], [qeCode],
    count(DISTINCT euSurfaceWaterBodyCode) as [numberOfWaterBodiesFailing],
    count(DISTINCT countryCode) as [numberOfCountries],
    max(countryCode) as [exampleCountry]
FROM [WISE_WFD].[v2r1].[SWB_SurfaceWaterBody_FailingRBSP] a
JOIN
(SELECT *
FROM (VALUES
('EEA_11-01-8 - PhytoplanktonEQR_G','QE1-1 - Phytoplankton'),
('EEA_11-02-9 - PhytoplanktonEQR_H','QE1-1 - Phytoplankton'),
('EEA_11-03-0 - PhytoplanktonEQR_A','QE1-1 - Phytoplankton'),
('EEA_11-04-1 - PhytoplanktonEQR_E','QE1-1 - Phytoplankton'),
('EEA_11-05-2 - Total phytoplankton biomass','QE1-1 - Phytoplankton'),
('EEA_11-06-3 - Cyanobacteria biomass','QE1-1 - Phytoplankton'),
('EEA_11-07-4 - Cyanobacteria proportion','QE1-1 - Phytoplankton'),
('EEA_11-08-5 - PhytoplanktonEQR','QE1-1 - Phytoplankton'),
('EEA_121-01-7 - MacroalgaeEQR','QE1-2-1 - Macroalgae'),
('EEA_122-02-1 - AngiospermsEQR','QE1-2-2 - Angiosperms'),
('EEA_123-01-3 - MacrophyteEQR_G','QE1-2-3 - Macrophytes'),
('EEA_123-02-4 - MacrophyteEQR_H','QE1-2-3 - Macrophytes'),
('EEA_123-03-5 - MacrophyteEQR_A','QE1-2-3 - Macrophytes'),
('EEA_123-04-6 - MacrophyteEQR_E','QE1-2-3 - Macrophytes'),
('EEA_123-05-7 - Macrophyte depth limit','QE1-2-3 - Macrophytes'),
('EEA_123-06-8 - Charaphytes presence','QE1-2-3 - Macrophytes'),
('EEA_123-07-9 - Isoetides presence','QE1-2-3 - Macrophytes'),
('EEA_124-01-6 - PhytobenthosEQR_G','QE1-2-4 - Phytobenthos'),
('EEA_124-02-7 - PhytobenthosEQR_H','QE1-2-4 - Phytobenthos'),
('EEA_124-03-8 - PhytobenthosEQR_A','QE1-2-4 - Phytobenthos'),
('EEA_124-04-9 - PhytobenthosEQR_E','QE1-2-4 - Phytobenthos'),
('EEA_13-01-4 - InvertebrateEQR_G','QE1-3 - Benthic invertebrates'),
('EEA_13-02-5 - InvertebrateEQR_H','QE1-3 - Benthic invertebrates'),
('EEA_13-03-6 - InvertebrateEQR_A','QE1-3 - Benthic invertebrates'),
('EEA_13-04-7 - InvertebrateEQR_E','QE1-3 - Benthic invertebrates'),
('EEA_13-05-8 - InvertebrateEQR','QE1-3 - Benthic invertebrates'),
('EEA_14-01-7 - FishEQR_G','QE1-4 - Fish'),
('EEA_14-02-8 - FishEQR_H','QE1-4 - Fish'),
('EEA_14-03-9 - FishEQR_A','QE1-4 - Fish'),
('EEA_14-04-0 - FishEQR_E','QE1-4 - Fish'),
('EEA_14-05-1 - FishEQR','QE1-4 - Fish'),
('EEA_15-01-0 - Escherichia coli','QE1-5 - Other species'),
('EEA_15-02-1 - Intestinal enterococci','QE1-5 - Other species'),
('EEA_15-03-2 - Clostridium perfringens','QE1-5 - Other species'),
('EEA_15-04-3 - Coliform bacteria','QE1-5 - Other species'),
('EEA_15-05-4 - Legionella','QE1-5 - Other species'),
('EEA_15-06-5 - Intestinal nematodes','QE1-5 - Other species'),
('EEA_3111-01-1 - Secchi depth','QE3-1-1-1 - Secchi disk depth'),
('EEA_31-02-7 - Total suspended solids','QE3-1-1-2 - Other determinand for transparency'),
('EEA_31-03-8 - Total dissolved solids','QE3-1-1-2 - Other determinand for transparency'),
('EEA_3112-01-4 - Turbidity','QE3-1-1-2 - Other determinand for transparency'),
('EEA_3121-01-5 - Water temperature','QE3-1-2-1 - Water temperature'),
('EEA_3131-01-9 - Oxygen saturation','QE3-1-3-1 - Oxygen saturation'),
('EEA_3132-01-2 - Dissolved oxygen','QE3-1-3-2 - Dissolved oxygen'),
('EEA_3133-01-5 - BOD5','QE3-1-3-3 - Other determinand for oxygenation conditions'),
('EEA_3133-02-6 - BOD7','QE3-1-3-3 - Other determinand for oxygenation conditions'),
('EEA_3133-03-7 - CODCr','QE3-1-3-3 - Other determinand for oxygenation conditions'),
('EEA_3133-04-8 - CODMn','QE3-1-3-3 - Other determinand for oxygenation conditions'),
('EEA_3133-05-9 - Dissolved organic carbon (DOC)','QE3-1-3-3 - Other determinand for oxygenation conditions'),
('EEA_3133-06-0 - Total organic carbon (TOC)','QE3-1-3-3 - Other determinand for oxygenation conditions'),
('EEA_3133-07-1 - Oxidisability','QE3-1-3-3 - Other determinand for oxygenation conditions'),
('EEA_3141-01-3 - Salinity','QE3-1-4-1 - Practical salinity units'),
('CAS_16887-00-6 - Chloride','QE3-1-4-2 - Other determinand for salinity'),
('CAS_18785-72-3 - Sulphate','QE3-1-4-2 - Other determinand for salinity'),
('EEA_31-01-6 - Hardness','QE3-1-4-2 - Other determinand for salinity'),
('EEA_3142-01-6 - Electrical conductivity','QE3-1-4-2 - Other determinand for salinity'),
('EEA_3142-02-7 - Chlorine Cl-','QE3-1-4-2 - Other determinand for salinity'),
('EEA_3151-01-7 - Acid neutralising capacity','QE3-1-5-1 - Acid neutralising capacity'),
('EEA_3152-01-0 - pH','QE3-1-5-2 - pH'),
('CAS_71-52-3 - Hydrogen Carbonate (Bicarbonate) HCO3','QE3-1-5-3 - Other determinand for acidification status'),
('EEA_3153-01-3 - Acid neutralising capacity to pH 4.5','QE3-1-5-3 - Other determinand for acidification status'),
('EEA_3153-02-4 - Alkalinity','QE3-1-5-3 - Other determinand for acidification status'),
('EEA_3161-01-1 - Kjeldahl nitrogen','QE3-1-6-1 - Nitrogen conditions'),
('EEA_3161-02-2 - Total oxidised nitrogen','QE3-1-6-1 - Nitrogen conditions'),
('EEA_3161-03-3 - Total organic nitrogen','QE3-1-6-1 - Nitrogen conditions'),
('EEA_3161-04-4 - Particulate organic nitrogen','QE3-1-6-1 - Nitrogen conditions'),
('EEA_3161-05-5 - Total inorganic nitrogen','QE3-1-6-1 - Nitrogen conditions'),
('CAS_14797-55-8 - Nitrate','QE3-1-6-1-1 - Nitrate'),
('CAS_14797-65-0 - Nitrite','QE3-1-6-1-2 - Nitrite'),
('EEA_31613-01-1 - Non-ionised ammonia','QE3-1-6-1-3 - Non-ionised ammonia'),
('CAS_14798-03-9 - Ammonium','QE3-1-6-1-4 - Ammonium'),
('EEA_31615-01-7 - Total nitrogen','QE3-1-6-1-5 - Total nitrogen'),
('CAS_14265-44-2 - Phosphate','QE3-1-6-2-1 - Orthophosphate'),
('CAS_7723-14-0 - Total phosphorus','QE3-1-6-2-2 - Total phosphorus'),
('EEA_3163-01-7 - Silicate','QE3-1-6-3 - Silicate'),
('EEA_3164-01-0 - Chlorophyll a','QE3-1-6-4 - Other determinand for nutrient conditions'),
('EEA_3164-07-6 - Total nitrogen to total phosphorus ratio','QE3-1-6-4 - Other determinand for nutrient conditions'),
('EEA_3164-08-7 - Nitrate to orthophosphate ratio','QE3-1-6-4 - Other determinand for nutrient conditions')
) AS t(parameterCode, qeCode))

  b
  on a.[swFailingRBSP] = b.[parameterCode]
  WHERE [hasDescriptiveData] = 1
  AND [cYear] = 2022
  AND [swFailingRBSP] != 'EEA_00-00-0 - Other parameter'
  AND [swFailingRBSP] != 'None'
  GROUP BY [swFailingRBSP], [qeCode]

Surface water ecological monitoring - 3rd cycle

See Table 16: for an overview of the Surface water ecological monitoring reported in the 3rd cycle RBMPs. Note that more than one substance or parameter can be aggregated under each Quality Element code.

For QE3-1 (General parameters), it is preferable to use the substance code and aggregate the reported data to the corresponding quality element. Given that both options - quality element code and substance code - were used in the reporting, the query is more complex.

In the 4th cycle, the use of the CAS and EEA codes should be recommended. At least the use of the ‘QE3-3 - River Basin Specific Pollutants’ should be avoided.

Show table with the ecological monitoring

Table 16 Surface water ecological monitoring - 3rd cycle

qeCode	records	sites	waterBodies	countries
QE1-1 - Phytoplankton	10751	10751	8168	25
QE1-2 - Other aquatic flora	10582	10582	7864	7
QE1-2-1 - Macroalgae	1305	1305	738	13
QE1-2-2 - Angiosperms	1160	1160	505	12
QE1-2-3 - Macrophytes	15491	15491	12195	24
QE1-2-4 - Phytobenthos	22475	22475	18781	24
QE1-3 - Benthic invertebrates	46693	46693	36673	25
QE1-4 - Fish	26509	26509	20455	24
QE2-1 - Hydrological or tidal regime	13196	13196	11339	17
QE2-2 - River continuity conditions	12158	12158	10416	14
QE2-3 - Morphological conditions	20428	20428	17332	17
QE3-1-1 - Transparency conditions	4519	4519	3577	11
QE3-1-1-1 - Secchi disk depth	4430	4430	3294	16
QE3-1-1-2 - Other determinand for transparency	15354	14175	11711	15
QE3-1-2 - Thermal conditions	14156	14156	11983	10
QE3-1-2-1 - Water temperature	25894	25620	21364	20
QE3-1-3 - Oxygenation conditions	17869	17869	14781	14
QE3-1-3-1 - Oxygen saturation	15724	15538	12250	14
QE3-1-3-2 - Dissolved oxygen	21166	20892	17793	20
QE3-1-3-3 - Other determinand for oxygenation conditions	39655	25007	20888	19
QE3-1-4 - Salinity conditions	12965	12965	10871	14
QE3-1-4-1 - Practical salinity units	3176	3170	2059	10
QE3-1-4-2 - Other determinand for salinity	36683	21167	17308	18
QE3-1-5 - Acidification status	15457	15457	12622	11
QE3-1-5-1 - Acid neutralising capacity	2896	2896	1883	4
QE3-1-5-2 - pH	30704	30358	24288	20
QE3-1-5-3 - Other determinand for acidification status	12034	11910	9497	10
QE3-1-6-1 - Nitrogen conditions	20651	20601	16353	18
QE3-1-6-1-1 - Nitrate	27391	26992	21881	20
QE3-1-6-1-2 - Nitrite	16495	16270	13926	17
QE3-1-6-1-3 - Non-ionised ammonia	1947	1822	1669	6
QE3-1-6-1-4 - Ammonium	27948	27573	23310	21
QE3-1-6-1-5 - Total nitrogen	21694	21123	17336	17
QE3-1-6-2 - Phosphorus conditions	17255	17255	14136	15
QE3-1-6-2-1 - Orthophosphate	24756	24458	20381	21
QE3-1-6-2-2 - Total phosphorus	28109	27460	22850	19
QE3-1-6-3 - Silicate	2001	2001	1483	10
QE3-1-6-4 - Other determinand for nutrient conditions	818	818	487	8
QE3-3 - River Basin Specific Pollutants	9174	9174	7591	14

Show code

Example 12 Surface water ecological monitoring - 3rd cycle

--   https://discodata.eea.europa.eu/
SELECT COALESCE(b.[qeCode], a.[parameterCode]) AS [qeCode]
    ,count(*) as [numberOfRecords]
    ,count(distinct [euMonitoringSiteCode]) as [numberOfSites]
    ,count(distinct [waterbodyCode]) as [numberOfWaterBodies]
    ,count(distinct [countryCode]) as [numberOfCountries]
FROM [WISE_WFD].[v2r1].[Monitoring_MonitoringSite_ChemicalEcologicalQuantitativeMonitoring] a
LEFT JOIN
(
  SELECT *
  FROM (VALUES
  ('EEA_11-01-8 - PhytoplanktonEQR_G','QE1-1 - Phytoplankton'),
  ('EEA_11-02-9 - PhytoplanktonEQR_H','QE1-1 - Phytoplankton'),
  ('EEA_11-03-0 - PhytoplanktonEQR_A','QE1-1 - Phytoplankton'),
  ('EEA_11-04-1 - PhytoplanktonEQR_E','QE1-1 - Phytoplankton'),
  ('EEA_11-05-2 - Total phytoplankton biomass','QE1-1 - Phytoplankton'),
  ('EEA_11-06-3 - Cyanobacteria biomass','QE1-1 - Phytoplankton'),
  ('EEA_11-07-4 - Cyanobacteria proportion','QE1-1 - Phytoplankton'),
  ('EEA_11-08-5 - PhytoplanktonEQR','QE1-1 - Phytoplankton'),
  ('EEA_121-01-7 - MacroalgaeEQR','QE1-2-1 - Macroalgae'),
  ('EEA_122-02-1 - AngiospermsEQR','QE1-2-2 - Angiosperms'),
  ('EEA_123-01-3 - MacrophyteEQR_G','QE1-2-3 - Macrophytes'),
  ('EEA_123-02-4 - MacrophyteEQR_H','QE1-2-3 - Macrophytes'),
  ('EEA_123-03-5 - MacrophyteEQR_A','QE1-2-3 - Macrophytes'),
  ('EEA_123-04-6 - MacrophyteEQR_E','QE1-2-3 - Macrophytes'),
  ('EEA_123-05-7 - Macrophyte depth limit','QE1-2-3 - Macrophytes'),
  ('EEA_123-06-8 - Charaphytes presence','QE1-2-3 - Macrophytes'),
  ('EEA_123-07-9 - Isoetides presence','QE1-2-3 - Macrophytes'),
  ('EEA_124-01-6 - PhytobenthosEQR_G','QE1-2-4 - Phytobenthos'),
  ('EEA_124-02-7 - PhytobenthosEQR_H','QE1-2-4 - Phytobenthos'),
  ('EEA_124-03-8 - PhytobenthosEQR_A','QE1-2-4 - Phytobenthos'),
  ('EEA_124-04-9 - PhytobenthosEQR_E','QE1-2-4 - Phytobenthos'),
  ('EEA_13-01-4 - InvertebrateEQR_G','QE1-3 - Benthic invertebrates'),
  ('EEA_13-02-5 - InvertebrateEQR_H','QE1-3 - Benthic invertebrates'),
  ('EEA_13-03-6 - InvertebrateEQR_A','QE1-3 - Benthic invertebrates'),
  ('EEA_13-04-7 - InvertebrateEQR_E','QE1-3 - Benthic invertebrates'),
  ('EEA_13-05-8 - InvertebrateEQR','QE1-3 - Benthic invertebrates'),
  ('EEA_14-01-7 - FishEQR_G','QE1-4 - Fish'),
  ('EEA_14-02-8 - FishEQR_H','QE1-4 - Fish'),
  ('EEA_14-03-9 - FishEQR_A','QE1-4 - Fish'),
  ('EEA_14-04-0 - FishEQR_E','QE1-4 - Fish'),
  ('EEA_14-05-1 - FishEQR','QE1-4 - Fish'),
  ('EEA_15-01-0 - Escherichia coli','QE1-5 - Other species'),
  ('EEA_15-02-1 - Intestinal enterococci','QE1-5 - Other species'),
  ('EEA_15-03-2 - Clostridium perfringens','QE1-5 - Other species'),
  ('EEA_15-04-3 - Coliform bacteria','QE1-5 - Other species'),
  ('EEA_15-05-4 - Legionella','QE1-5 - Other species'),
  ('EEA_15-06-5 - Intestinal nematodes','QE1-5 - Other species'),
  ('EEA_3111-01-1 - Secchi depth','QE3-1-1-1 - Secchi disk depth'),
  ('EEA_31-02-7 - Total suspended solids','QE3-1-1-2 - Other determinand for transparency'),
  ('EEA_31-03-8 - Total dissolved solids','QE3-1-1-2 - Other determinand for transparency'),
  ('EEA_3112-01-4 - Turbidity','QE3-1-1-2 - Other determinand for transparency'),
  ('EEA_3121-01-5 - Water temperature','QE3-1-2-1 - Water temperature'),
  ('EEA_3131-01-9 - Oxygen saturation','QE3-1-3-1 - Oxygen saturation'),
  ('EEA_3132-01-2 - Dissolved oxygen','QE3-1-3-2 - Dissolved oxygen'),
  ('EEA_3133-01-5 - BOD5','QE3-1-3-3 - Other determinand for oxygenation conditions'),
  ('EEA_3133-02-6 - BOD7','QE3-1-3-3 - Other determinand for oxygenation conditions'),
  ('EEA_3133-03-7 - CODCr','QE3-1-3-3 - Other determinand for oxygenation conditions'),
  ('EEA_3133-04-8 - CODMn','QE3-1-3-3 - Other determinand for oxygenation conditions'),
  ('EEA_3133-05-9 - Dissolved organic carbon (DOC)','QE3-1-3-3 - Other determinand for oxygenation conditions'),
  ('EEA_3133-06-0 - Total organic carbon (TOC)','QE3-1-3-3 - Other determinand for oxygenation conditions'),
  ('EEA_3133-07-1 - Oxidisability','QE3-1-3-3 - Other determinand for oxygenation conditions'),
  ('EEA_3141-01-3 - Salinity','QE3-1-4-1 - Practical salinity units'),
  ('CAS_16887-00-6 - Chloride','QE3-1-4-2 - Other determinand for salinity'),
  ('CAS_18785-72-3 - Sulphate','QE3-1-4-2 - Other determinand for salinity'),
  ('EEA_31-01-6 - Hardness','QE3-1-4-2 - Other determinand for salinity'),
  ('EEA_3142-01-6 - Electrical conductivity','QE3-1-4-2 - Other determinand for salinity'),
  ('EEA_3142-02-7 - Chlorine Cl-','QE3-1-4-2 - Other determinand for salinity'),
  ('EEA_3151-01-7 - Acid neutralising capacity','QE3-1-5-1 - Acid neutralising capacity'),
  ('EEA_3152-01-0 - pH','QE3-1-5-2 - pH'),
  ('CAS_71-52-3 - Hydrogen Carbonate (Bicarbonate) HCO3','QE3-1-5-3 - Other determinand for acidification status'),
  ('EEA_3153-01-3 - Acid neutralising capacity to pH 4.5','QE3-1-5-3 - Other determinand for acidification status'),
  ('EEA_3153-02-4 - Alkalinity','QE3-1-5-3 - Other determinand for acidification status'),
  ('EEA_3161-01-1 - Kjeldahl nitrogen','QE3-1-6-1 - Nitrogen conditions'),
  ('EEA_3161-02-2 - Total oxidised nitrogen','QE3-1-6-1 - Nitrogen conditions'),
  ('EEA_3161-03-3 - Total organic nitrogen','QE3-1-6-1 - Nitrogen conditions'),
  ('EEA_3161-04-4 - Particulate organic nitrogen','QE3-1-6-1 - Nitrogen conditions'),
  ('EEA_3161-05-5 - Total inorganic nitrogen','QE3-1-6-1 - Nitrogen conditions'),
  ('CAS_14797-55-8 - Nitrate','QE3-1-6-1-1 - Nitrate'),
  ('CAS_14797-65-0 - Nitrite','QE3-1-6-1-2 - Nitrite'),
  ('EEA_31613-01-1 - Non-ionised ammonia','QE3-1-6-1-3 - Non-ionised ammonia'),
  ('CAS_14798-03-9 - Ammonium','QE3-1-6-1-4 - Ammonium'),
  ('EEA_31615-01-7 - Total nitrogen','QE3-1-6-1-5 - Total nitrogen'),
  ('CAS_14265-44-2 - Phosphate','QE3-1-6-2-1 - Orthophosphate'),
  ('CAS_7723-14-0 - Total phosphorus','QE3-1-6-2-2 - Total phosphorus'),
  ('EEA_3163-01-7 - Silicate','QE3-1-6-3 - Silicate'),
  ('EEA_3164-01-0 - Chlorophyll a','QE3-1-6-4 - Other determinand for nutrient conditions'),
  ('EEA_3164-07-6 - Total nitrogen to total phosphorus ratio','QE3-1-6-4 - Other determinand for nutrient conditions'),
  ('EEA_3164-08-7 - Nitrate to orthophosphate ratio','QE3-1-6-4 - Other determinand for nutrient conditions')
  ) AS t(parameterCode, qeCode)) AS b

  ON a.[parameterCode] = b.[parameterCode]

  WHERE [hasDescriptiveData] = 1
  AND [cYear] = 2022
  AND [waterBodyCategory] != 'GW'
  AND (a.[parameterCode] LIKE 'QE%' OR b.[qeCode] IS NOT NULL)
  GROUP BY COALESCE(b.[qeCode], a.[parameterCode])

Assessment method for quality elements - 3rd cycle

All the information analysed above refers to “in-situ” data, i.e. conventional monitoring.

Show code

Example 13 Assessment method for quality elements - 3rd cycle

--   https://discodata.eea.europa.eu/

/**
For the 4th cycle, the assessment methods codelist provided with QualityElement table must also include non-conventional monitoring.
**/

SELECT [qeCode]
      ,[qeMonitoringResults]
      ,count(*) as [numberOfWaterBodies]
      ,count(distinct [countryCode]) as [numberOfCountries]
  FROM [WISE_WFD].[latest].[SWB_SurfaceWaterBody_QualityElement]
  WHERE [hasDescriptiveData] = 1
  AND [cYear] = 2022
  AND [qeStatusOrPotentialValue] IN ('1', '2', '3', '4','5')
  GROUP BY [qeCode], [qeMonitoringResults]
  ORDER BY [qeCode], [qeMonitoringResults]

Number of monitoring sites with different purposes - 3rd cycle

Show code

Example 14 Number of monitoring sites with different purposes - 3rd cycle

SELECT  c.notation,
        c.label,
        count(distinct thematicIdIdentifier) as numberOfSites
  FROM [WISE_Spatial].[wfd].[SPATIAL_MonitoringSite]
  CROSS APPLY string_split(purpose, ',')
  JOIN [WISE].[mapping].[lov] c
  ON c.notation = value
  AND c.tableName = 'WisePurposeOfCollectionValue'
  WHERE cYear = 2022
  AND c.notation in ('WFD','SOE','AGR','IND','DRI','DWD','SHE','BWD','UWW','NID','HAB','RIV','SEA','INT','MSF','REF')
  GROUP BY c.notation,
        c.label
  ORDER BY numberOfSites desc

Data extraction - pending issues - 3rd cycle

During the data analysis, some incorrect data extraction issues where detected.

[waterBodyCategory] should not be null - affects 19 sites

Example 15 Issue: [waterBodyCategory] should not be null

SELECT *
FROM [WISE_WFD].[v2r1].[Monitoring_MonitoringSite_ChemicalEcologicalQuantitativeMonitoring]
WHERE [cYear] = 2022
AND [hasDescriptiveData] = 1
AND [parameterOther] IS NULL
AND [waterBodyCategory] is NULL

Inadequate reclassification to ‘Missing’, should be ‘Inapplicable’

Example 16 Issue: [waterBodyCategory] Inadequate reclassification to ‘Missing’, should be ‘Inapplicable’

SELECT *
FROM [WISE_WFD].[v2r1].[Monitoring_MonitoringSite_ChemicalEcologicalQuantitativeMonitoring]
WHERE [cYear] = 2022
AND [hasDescriptiveData] = 1
AND [parameterOther] IS NULL
AND [waterBodyCategory] is NULL

References

---

[1] (1,2)

European Commission and Directorate-General for Environment. CIS Guidance Document No. 35: WFD Reporting Guidance 2016. Common Implementation Strategy for the Water Framework Directive (2000/60/EC), European Commission, 2016. URL: https://circabc.europa.eu/rest/download/5b969dc0-6863-4f75-b5d8-8561cec91693.

[2] (1,2)

European Commission and Directorate-General for Environment. CIS Guidance Document: WFD Reporting Guidance 2022. Common Implementation Strategy for the Water Framework Directive (2000/60/EC), European Commission, 2022. URL: https://circabc.europa.eu/rest/download/37913699-1297-4d93-8cdf-9975277bb685.

[3] (1,2)

SDMX Statistical Working Group. Guidelines for Confidentiality and Embargo in SDMX. Content-Oriented Guideline, Statistical Data and Metadata eXchange (SDMX), 2018. Part of the SDMX Content-Oriented Guidelines framework; details use cases for data protection and data suppression mechanisms. URL: https://sdmx.org/wp-content/uploads/Guidelines_on_Confidentiality_and_Embargo.docx.

[4] (1,2)

SDMX Statistical Working Group. SDMX Cross-Domain Code Lists: CL_CONF_STATUS (Code list for Confidentiality Status). Standard Codelist, Statistical Data and Metadata eXchange (SDMX), 2014. Official cross-domain code list providing coded information about data sensitivity and suppression mechanisms. URL: https://sdmx.org/wp-content/uploads/CL_CONF_STATUS_v1_1_26-6-2014.doc.
