Data model diagram

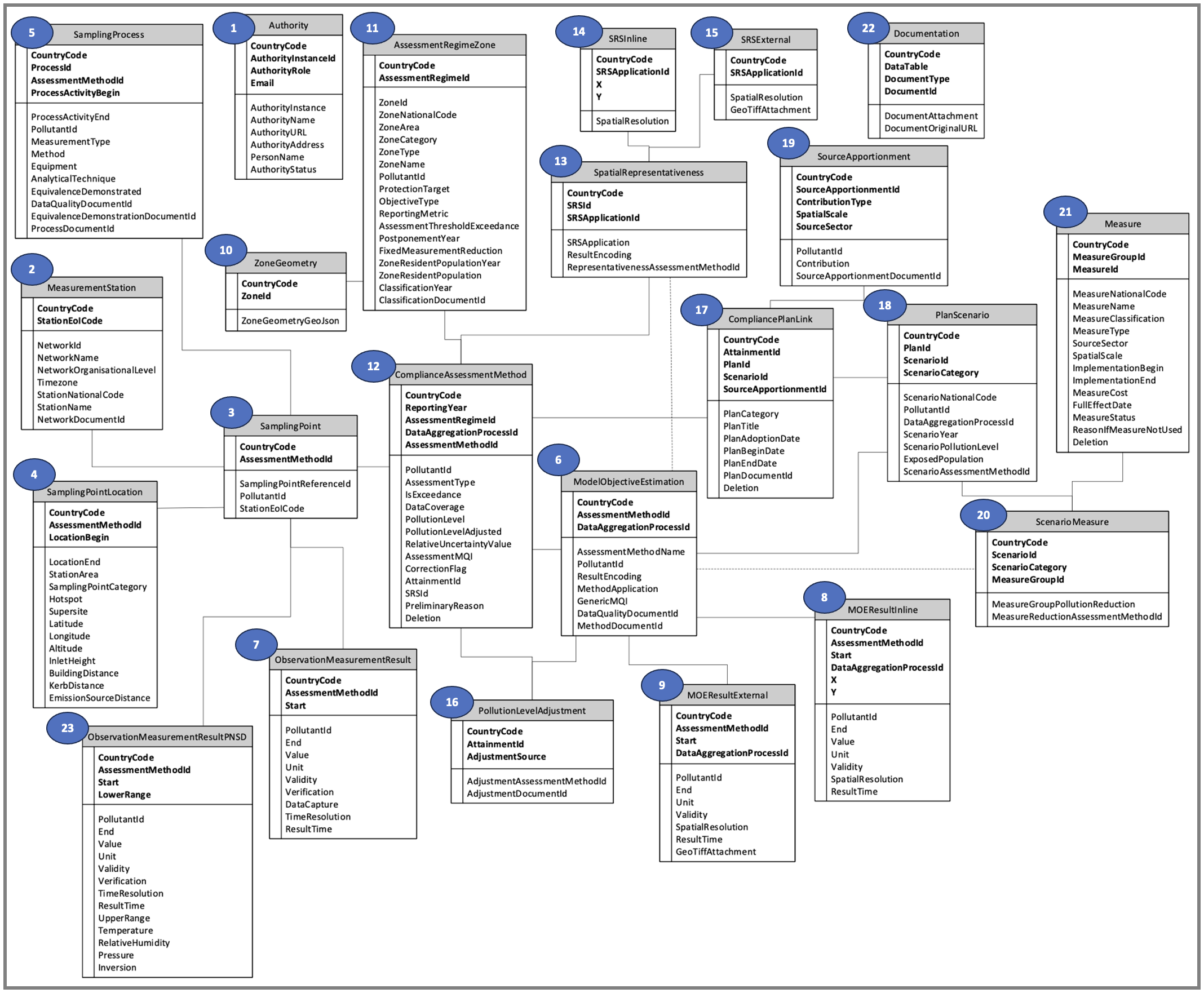

The following diagram provides an overview of the Reportnet air quality reporting data model (v502).
Tables shown in the diagram
